Transfer Time | 10-20 sec | Temperature | 150-160℃ |
Transfer Pressure | 0.2 kgf/cm^2 | Size | 50cm/100cm *25m /roll. Other size can be customized.
|
Valid thickness | 100-120 micron | Peeling Method | Cold Peeling |
The effect | matte effect | Color | White |
Fabric | cotton, polyester, fiber etc | Washing time | 120 times |
Feature:

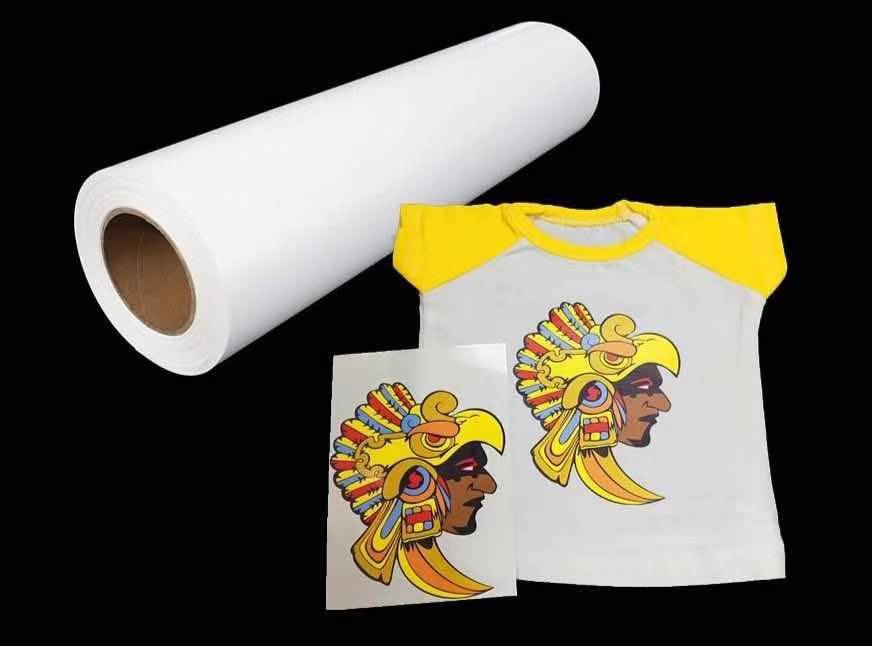

1. White color print & cut PU flex works on both dark and light color tshirt.
2.100% PU, stretchable and resilient.
2. Soft hand touching and thinness to 30 microns of coating layer;
4. Excellent ink absorbtion (suit for original ink and third party ink), applied with eco solvent ink with high color reproduction. Indigo digital printer workable also.
5. Good washing resistance ,Washing test over 120 times,30mins/time, no fade no crack.
Step
1. Cut your design in mirror image on the dull side (that does not show the final color)
2. Weed the excess material from the design.
3. Pre-heat your iron and fabric (No STEAM)
4. Place the design on your fabric (final color side up)
5. Press down iron with firm pressure for 185 degrees Celsius with 15 seconds.
6. Peel off the clear film on its surface. (cold peel)
Advantage
1. Good ink-fastness for pretty design
2. Easy to cut & weed (Hot/cold peel after heat pressing)
3. Springback reaches more than 95%,100% PU
4. Width tolerance within 1 mm
Material and operation setting
1.Printer setting: Better preheat to 30-35 degrees before printing， printing parameter：room temperature：normal temperature 25°C；precision：1440DPI; Ink 300；relative humidity：RH%75.
2：Heat press setting: 165°C，25seconds，medium/high pressure ,hot/cold peel after heat pressing
3: 30 degrees blade angle suggested. Keep drying for 3 minutes after printing.
4：Fabric: Suitable for any light fabric (light white,pink etc) cotton, cotton/polyester blend, polyester/spandex blend etc.
5:Heat Tips：Cover with a piece of cloth on the image, the result will be better;
6. Compatible ink: eco-solvent ink, solvent ink
7. Compatible printer : Roland :BN-20,VS-300I,VS-540I，VS-640I,Solvent PRO IIIXJ-740,XJ-640 XC-540,XC-540W VersaArt RS-640,RS-540 VersaCAMM VP-540,VP-300 VersaCAMM SP-540V,SP-300V Mimaki： JV3-75SP/160SP/250SP/CJV30，Mutoh：RockHopper38/I/II/3 etc.Domestic printers：Helitin,XENONS etc.
Application:

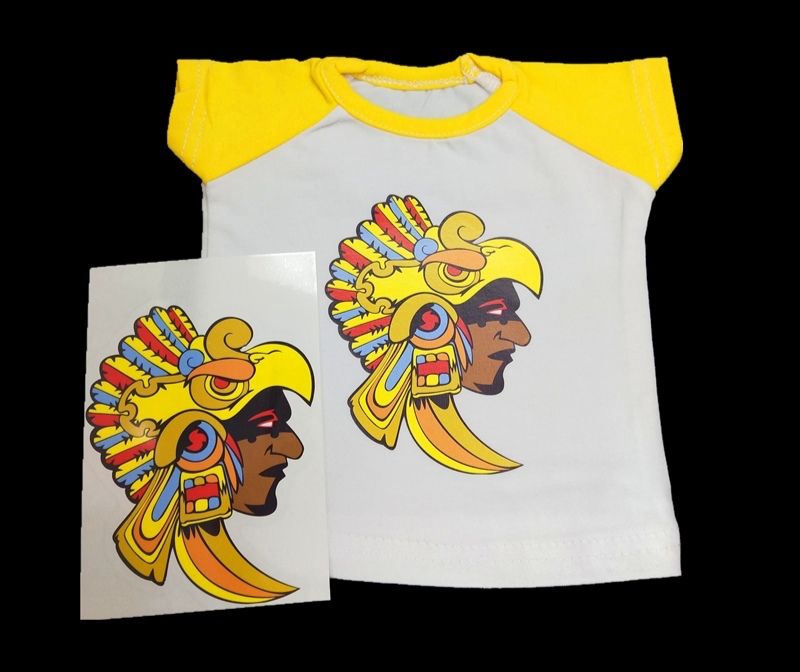

It is widely used in most fabric, like t-shirt, coat, cap, sportswear, shoes etc.
It makes our wear more characteristic. It is easy for you to stand out among people in the street.
